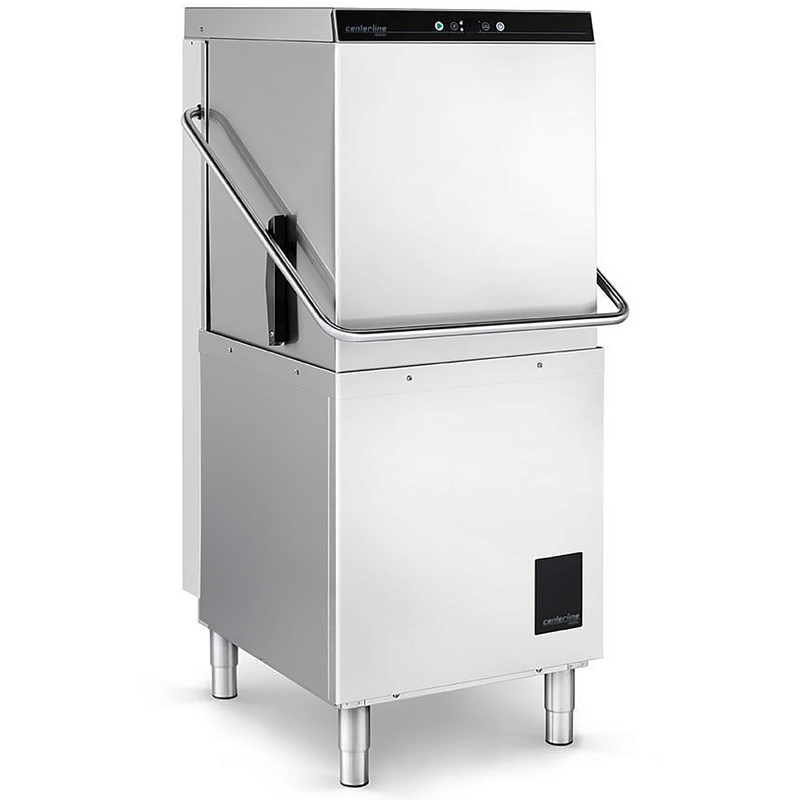

Hobart Centerline CDH-1/CDL-1 High-Temp/Low-Temp Hood Type Pass Through Dishwasher

HobartSKU: CDL-1

Type: Low Temperature


Features & Specifications:

  • Fully stainless steel construction
  • Digital temperature display conveniently located at the top of the hood
  • Built-in, self-priming detergent, rinse aid and chemical pumps
  • Recirculating design
  • Large 18" pillarless door opening to accommodate large dishes & large enough to fit 1 full size sheet pan
  • Tri-prong (CDH only) snap-in revolving upper and lower wash and rinse arms
  • Includes stainless steel scrap screen to catch debris and prevent clogging
  • Soft start slowly builds pressure, protecting fragile wares
  • Delime notification & cycle to prevent buildup
  • Water temperature booster (only on high temp CDH model)
  • Chemical sanitizing (only on low temp CDL model)
  • Straight through or corner installation
  • Automatic tank filling & pumped drain
  • LED temperature and operator display
  • Service diagnostics with error notifications
  • Water usage per rack (High-Temp): 0.73 gallons
  • Water usage per rack (Low-Temp): 0.86 gallons
  • 1 standard cycle with optional extended cycle
  • Temperature booster: 6.5KW (only on high temp CDH model)
  • CDH-1: 208V, 35.0A, 11.5KW, 3PH (field convertible to single phase)
  • CDL-1: 120V, 17.1A
  • Cleans up to 51 Racks/HR
  • 1 year parts & labour warranty
  • Energy Star Certified (Low-Temp only)
  • Made in Italy
  • ETL/CSA certified


Width: 24.1 in.
Depth:  29.5 in.
Height: 63 in.
Net Weight: 210 lbs
Gross Weight: 232 lbs

Available Options:

  • Chemical pump
  • Chemical sensing indicators
  • Corner splash kit
  • Water hammer arrestor kit
  • Drain water tempering kit
  • Pumped drain air gap kit
  • Flanged feet


Specification Sheet (CDH-1)

Specification Sheet (CDL-1)
