Phoenix Heavy Duty Storage Rack Kits (Includes 4 Shelf Layers & 2 Frames) - Various Sizes

Phoenix Food EquipmentSKU: PHK-2448-72

Depth: 24"
Length: 48" (4 Feet)
Height: 72" (6 Feet)
Price:
$284 CAD

Description

Phoenix heavy duty storage racks are designed to handle heavy and bulky items. The pallet rack style design is flexible and robust, perfect for heavier weights that wire shelving can't handle. The connecting design makes this shelving system more stable as you connect more pieces, making them perfect for parts rooms, retail, or large storage applications.

The flat board inserts prevent small boxes from being unbalanced or getting caught in openings formed by traditional wire grates. With a large variety of size combinations, this shelving is flexible enough to fit any space, from a warehouse to a home garage.

Features & Specifications:

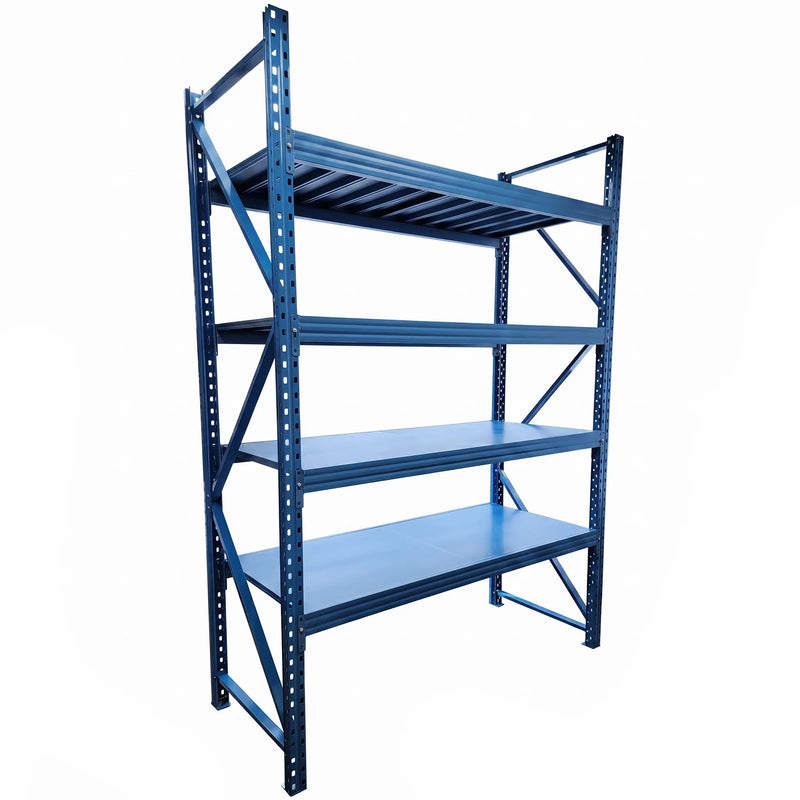

  • Kit includes 2 frames (with hardware) & 4 shelf layers (including flat boards)
  • Frames are put together using steel bars, nuts and bolts, all included
  • Frames are made of steel and painted blue, beams and flat board inserts are painted dark gray
  • To construct your racking system, two frames are required, but only one additional frame is required after the initial rack is constructed, since each frame can connect to beams on both sides
  • 800 to 1100 pound capacity per shelf layer when evenly distributed (800lbs capacity for each 8' layer, 1100lbs capacity for 4' and 6' layers)
  • True measurements may vary slightly. Please see table below for precise measurements:
 Model Exact Measurement
PHK-2448-72 (24" Deep x 48" Long x 72" High) 23.6"D x 47.2"L x 70.9"H
PHK-2448-96 (24" Deep x 48" Long x 96" High) 23.6"D x 47.2"L x 98.4"H
PHK-2448-120 (24" Deep x 48" Long x 120" High) 23.6"D x 47.2"L x 120.1"H
PHK-2472-72 (24" Deep x 72" Long x 72" High) 23.6"D x 70.9"L x 70.9"H
PHK-2472-96 (24" Deep x 72" Long x 96" High) 23.6"D x 70.9"L x 98.4"H
PHK-2472-120 (24" Deep x 72" Long x 120" High) 23.6"D x 70.9"L x 120.1"H
PHK-2496-72 (24" Deep x 96" Long x 72" High) 23.6"D x 98.4"L x 70.9"H
PHK-2496-96 (24" Deep x 96" Long x 96" High) 23.6"D x 98.4"L x 98.4"H
PHK-2496-120 (24" Deep x 96" Long x 120" High) 23.6"D x 98.4"L x 120.1"H
PHK-3072-96 (30" Deep x 72" Long x 96" High) 29.5"D x 70.9"L x 98.4"H
PHK-3072-120 (30" Deep x 72" Long x 120" High) 29.5"D x 70.9"L x 120.1"H
PHK-3096-96 (30" Deep x 96" Long x 96" High) 29.5"D x 98.4"L x 98.4"H
PHK-3096-120 (30" Deep x 96" Long x 120" High) 29.5"D x 98.4"L x 120.1"H
