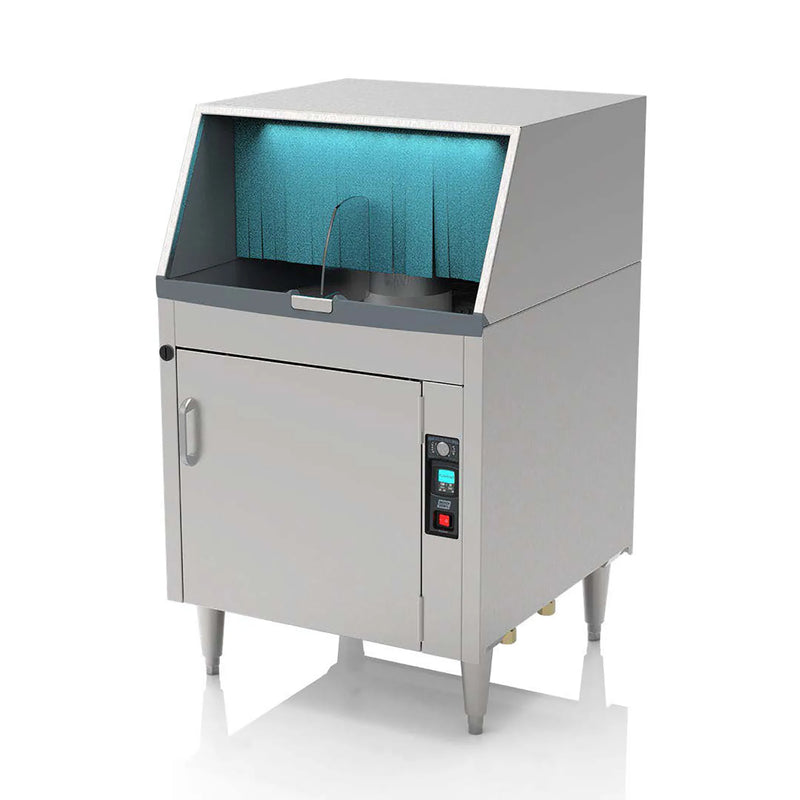

Moyer Diebel DF Revolution Rotating Glass Washer

SKU DF Revolution
$11,169.00 CAD

Notify me when back in stock

Pay in Monthly Installments

Rates and terms are set by Affirm through Shop Pay. Checking your eligibility won't affect your credit score.

Quick Shipped From Our Warehouse
Usually Ships Within 1-2 Business Days

Estimate Shipping

    Continuous Glass Washing for High Volume Bars

    The Moyer Diebel DF Revolution replaces batch washing with a rotary conveyor that moves glassware through the machine without waiting on a cycle, handling up to 1200 glasses per hour. For a busy bar, nightclub or stadium concession, that removes the single most common bottleneck of a Friday night: running out of clean pint glasses at the worst possible moment.

    Ready to Pour Straight Off the Conveyor

    A cool water rinse finishes every glass at a temperature that can be poured into immediately, rather than the hot glassware a high temperature machine delivers that has to sit and cool first. With 12 in. of glass clearance the machine takes tall pilsner glasses, shakers and stemware alongside standard pints.

    Efficient Rotary Technology

    Upper and lower wash and rinse spray systems cover the glass from both directions as the polypropylene conveyor rotates clockwise through the chamber, cutting water and energy use compared with running partial racks through a batch machine. An electric tank heater maintains wash temperature, and three built-in dispensing pumps keep chemical delivery automatic.

    Built for the Bar Environment

    Double-walled stainless steel construction keeps the machine quiet enough to sit in a service area without competing with conversation, and the self-flushing wash chamber clears debris on its own to reduce the daily maintenance bar staff tend to skip. Storage space for three 1 gallon chemical containers is built in, keeping bottles off the floor.

    • Stainless steel construction
    • Double-walled construction for quiet operation
    • 2" LCD display
    • 3 built-in dispensing pumps
    • Polypropylene conveyor with clockwise rotation
    • Upper & lower wash & rinse spray system
    • Self-flushing wash chamber reduces maintenance
    • Electric tank heater
    • Shut-off mechanism
    • Cool water rinse provides a cool glass ready for immediate use
    • Storage space for three 1-gallon containers
    Technical
    ThroughputUp to 1200 glasses per hour
    Glass Clearance12 in.
    Electrical208-230V, 15A, Single Phase
    Plug TypeNEMA 6-15P
    Warranty & Certifications
    Warranty1 year parts & labour
    CertificationsETLNSF
    WidthDepthHeightNet WeightShipping Weight
    24 in.24 1/2 in.39 in.156 lbs176 lbs

    Questions

    Frequently Asked Questions

    Common questions from operators.

    How is a rotary glass washer different from a rack machine?

    A rotary washer runs glasses continuously on a polypropylene conveyor instead of in batches, so bar staff load and unload without waiting on a cycle. The DF Revolution handles up to 1200 glasses per hour, which is throughput a batch machine cannot match in the same footprint. For a high volume bar or nightclub this removes the bottleneck of glassware during peak hours.

    Why does the cool water rinse matter for a bar?

    Glasses that come out of a high temperature machine are too hot to pour into and have to sit and cool, which is why bars run out of pint glasses at 11pm. The cool water rinse on the DF Revolution means a glass is ready for immediate use straight off the conveyor. With 12 in. of glass clearance, it handles tall pilsner glasses and shakers as well as standard pints.

    What maintenance does this glass washer need?

    The self-flushing wash chamber clears debris on its own, which is the maintenance task most likely to be skipped on a busy bar. Beyond that, keep the three dispensing pumps supplied, check the spray jets periodically, and use the shut-off mechanism at close. Storage space for three 1 gallon chemical containers is built in, so the bottles are not sitting on the floor beside the machine.
