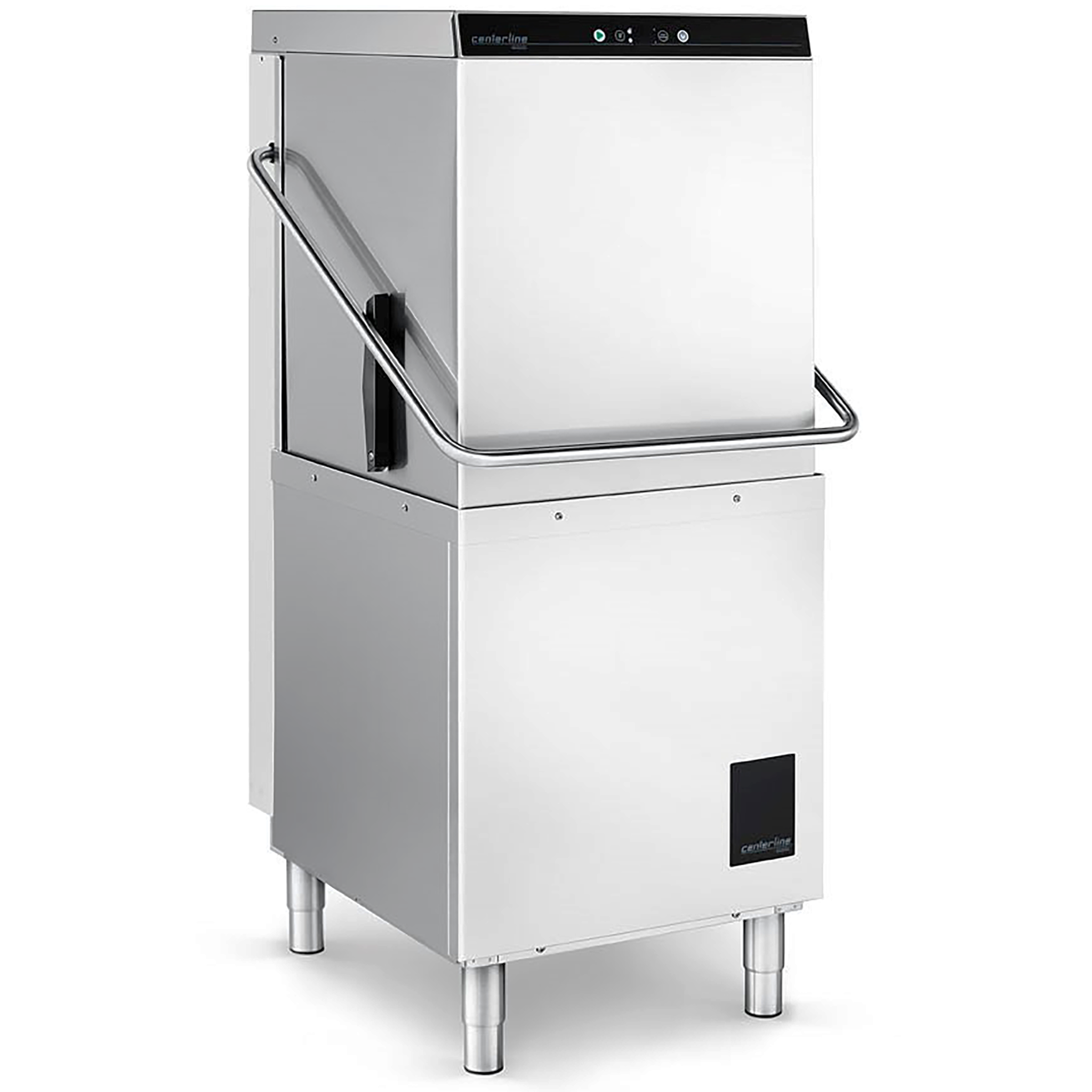

Hobart Centerline CDH-1/CDL-1 hood type pass through dishwasher, stainless steel with hood lowered, angled front view
by Hobart

Hobart Centerline CDH-1/CDL-1 High-Temp/Low-Temp Hood Type Pass Through Dishwasher

SKU CDL-1
$6,995.00 CAD
Type

Notify me when back in stock

Pay in Monthly Installments

Rates and terms are set by Affirm through Shop Pay. Checking your eligibility won't affect your credit score.

Quick Shipped From Our Warehouse
Usually Ships Within 1-2 Business Days

Promo banner Promo banner

Estimate Shipping

    Additional Accessories

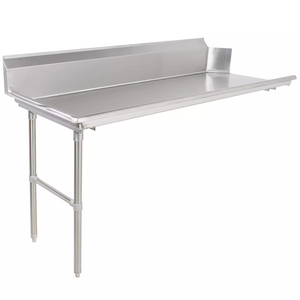

    Phoenix clean dish table with stainless backsplash, legs at the left end and open end at the rightPhoenix Clean Dish Tables
    $279.00 CAD

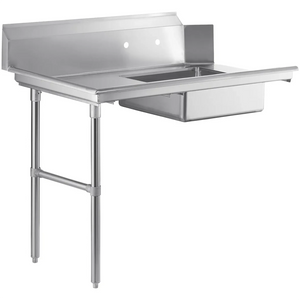

    Phoenix stainless steel dirty dish table with backsplash and pre-rinse sink basin on the right end, angled viewPhoenix Dirty Dish Tables
    $399.00 CAD

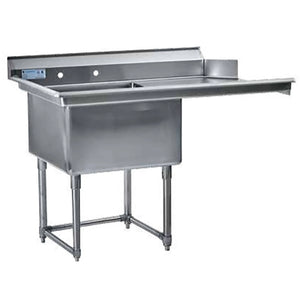

    Thorinox single basin dish washing sink in stainless steel with left and right drainboards, backsplash and legs, angledThorinox Single Basin Dish Washing Sink - Left & Right Side
    $919.00 CAD

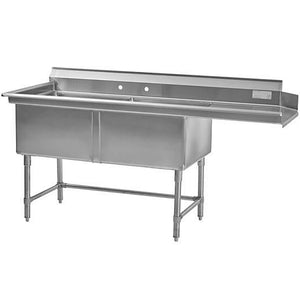

    Thorinox double basin dish washing sink in stainless steel with drainboards, backsplash and leg frame, angled from leftThorinox Double Basin Dish Washing Sink - Left & Right Side
    $1,349.00 CAD

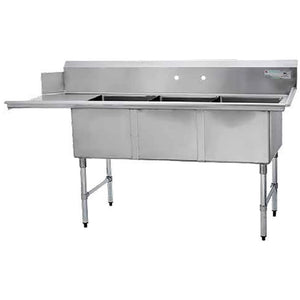

    Thorinox triple basin dish washing sink in stainless steel with left and right drainboards and backsplash, angled viewThorinox Triple Basin Dish Washing Sink - Left & Right Side
    $1,549.00 CAD
    BC Chemical BCD Clear-A concentrated detergent in a clear plastic jug with blue label, smaller size optionBC Chemical BCD Clear-A Concentrated Detergent
    $19.99 CAD
    BC Chemical BCRA Clear-B concentrated rinse agent, blue liquid in a plastic jug with Clear-B label, smaller sizeBC Chemical BCRA Clear-B Concentrated Rinse Agent
    $29.99 CAD

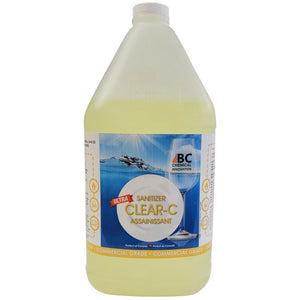

    BC Chemical BCS Clear-C concentrated sanitizer, yellow liquid in a plastic jug with Clear-C front labelBC Chemical BCS Clear-C Concentrated Sanitizer
    $14.99 CAD
    • Fully stainless steel construction
    • Digital temperature display conveniently located at the top of the hood
    • Built-in, self-priming detergent, rinse aid and chemical pumps
    • Detergent, rinse aid and sanitizer pump is only included on CDL-1; detergent and rinse aid pump is NOT included on CDH-1
    • Recirculating design
    • Large 18" pillarless door opening to accommodate large dishes & large enough to fit 1 full size sheet pan
    • Tri-prong (CDH only) snap-in revolving upper and lower wash and rinse arms
    • Includes stainless steel scrap screen to catch debris and prevent clogging
    • Soft start slowly builds pressure, protecting fragile wares
    • Delime notification & cycle to prevent buildup
    • Water temperature booster (only on high temp CDH model)
    • Chemical sanitizing (only on low temp CDL model)
    • Straight through or corner installation
    • Automatic tank filling & pumped drain
    • LED temperature and operator display
    • Service diagnostics with error notifications
    • 1 standard cycle with optional extended cycle
    • Cleans up to 51 Racks/HR
    • Made in Italy
    Technical
    Water usage per rack (High-Temp)0.73 gallons
    Water usage per rack (Low-Temp)0.86 gallons
    Temperature booster6.5KW (only on high temp CDH model)
    CDH-1208V, 35.0A, 11.5KW, 3PH (field convertible to single phase)
    CDL-1120V, 17.1A
    Warranty & Certifications
    Warranty1 year parts & labour
    CertificationsEnergy Star (Low-Temp only)ETL/CSA
    WidthDepthHeightNet WeightGross Weight
     24.1 in.  29.5 in. 63 in. 210 lbs232 lbs

    Available Options:

    Chemical pump

    Chemical sensing indicators

    Corner splash kit

    Water hammer arrestor kit

    Drain water tempering kit

    Pumped drain air gap kit

    Flanged feet

    Spec Sheet
